PP Geotechnical Bags itary Bunker Galfan Metal Gabion Baskets

Brand Name : Nova

Model Number : Nova-0005

Certification : ISO9001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100000 square meters per week

Delivery Time : 7-10 days, according to buyer's requirement

Packaging Details : In bundles

Wire diameter : 2.0-3.7mm

material of geobag : polypropylene

Size : 2*1*1m

Material of gabion : Galfan

Hole size : 8*10mm

Use for : itary bunker

Contact Now



2*1*1 Galfan Gabion Baskets With PP Geotechnical Bags For itary Bunker



Description:

It is made of Galfan coating gabion lining on the permeable fabric.

The Geotechnical Bags are made of high tensile synthetic geosynthetics with UV resistance. To ensure quality and prevent soil and sand loss, the pockets should be open without seams except at the bottom.

The water-retaining structure can be formed quickly by using local materials and filling sand, gravel, or natural graded gravel.


Geobags Specification:

The raw material of geobags is polypropylene fibers.

Item material

PP

Tensile strength(MD),(KN/M)

>80

Tensile strength(CMD),(KN/M)

>80

Breaking enlonggation(%)

<30

Uv resistance retention rate,(150h/%)

>95

Color

green

Remark

Special specification and size can be customized according to the requirement of a contract or agreement.



Gabion Box Specifications:

Gabion Size(m) Hole Size
8x10
Length Width Height Galfan
Wire diameter 3.05mm
2 1 1 Selvedge wire Dia 3.8mm
3 1 1 Lacing wire 2.2mm
4 1 1 Fastener 3.0mm
6 1 1












Gabion Baskets With PP Geotechnical Bags Application and Advantage:

1. Geobags can be equipped with a drop tank, retaining wall and common geotechnical bag for itary bunker

2. Geobags can significantly improve the speed of construction, solve the handling of excess earth and stone, save stone, reduce the cost of the project, in line with the requirements of ecological engineering, and beautiful generous, is often used in modern ecological engineering materials.

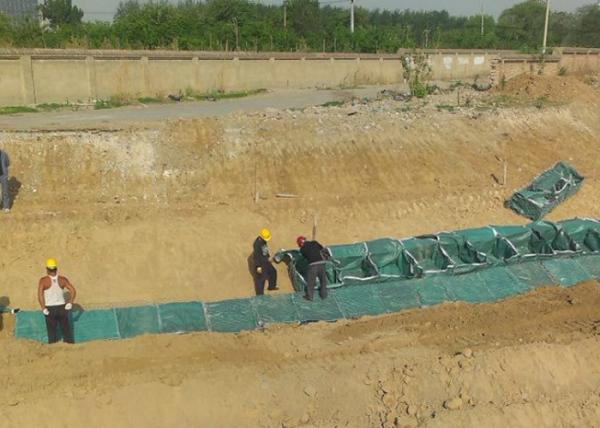

Construction technical requirements:

1. PP geotechnical bags and galfan gabion net combination in the bag mouth to pull up 10cm at the bottom of the square evenly open, filling soil and layered filling compacted, the height of 30cm.

2. PP geotechnical bags before sealing should use a small stone bag top about 8 ~ 10cm high, with sticky buckle adhesive, iron bar fixed Angle end, then ligate the borderline and stone cage net sealing.

PP Geotechnical Bags itary Bunker Galfan Metal Gabion Baskets
